Top Mounted Power Triplex module 1 USB A 1 USB C
For insert into Desk or Table Top
Fits flush (plus upper trim face) to Table or Desk Tops

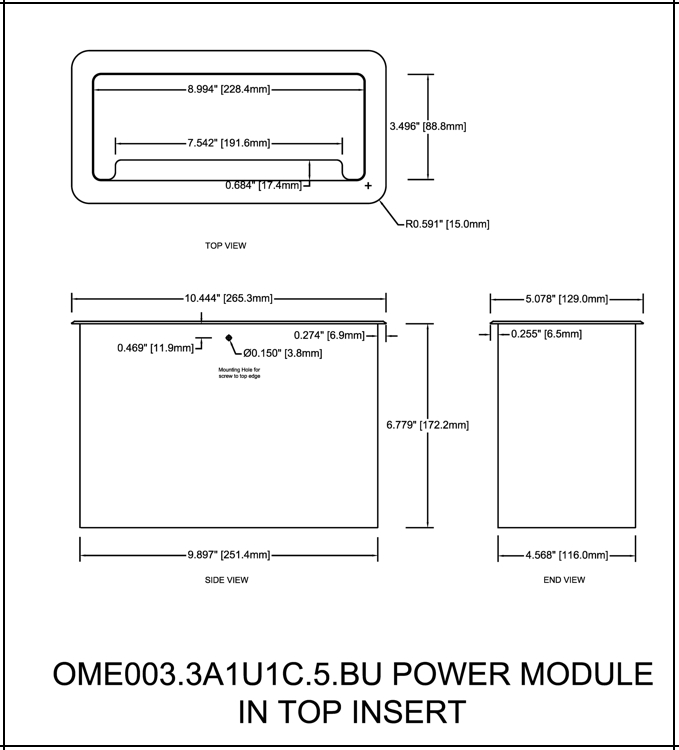

Requires a 10" x 4 11/16" hole to be cut into top (see drawing)
Has 14-gauge molded plug wire (black)
3 15 amp duplex outlets and 1 USB A and 1 USB C Ports
Face finish is brushed aluminum with tilt up lid
Specifications:
Top Insert top power module for Desk, Conference or Training tables
Triplex Power Module for desktops brushed aluminum trim with flip up lid
Includes USB A and C ports for charging. 5 VDC 3 Amp 15W
14-gauge cord.3 prong with ground.
Aluminum face with Black finish with black cord.
Fits:
Tops 1" or thicker
Opening cut is 10" x 4 11/6" (using a 1/4" router or jig saw)
- Desking
- Benching
- Cubicles
- Worksurfaces (1" thick or mores)
Module face is:
Aluminum with tilt up lip (retracable)
10 7/16" (265.3mm) x 5 5/64" (129mm)
Insert is:
Steel, Black Finish
9 57/64" (251.4mm) long
4 9/16" (116mm) wide
6 25/32" (172.2mm) deep
Cut open require is 10" (254mm) x 4 11/16" (119mm) using a 1/4" diameter router bit.
Two screw locations 15/32" down from top surface for locking into the side of the top core.
60" cord black molded 3 prong 14 gauge.
UL
