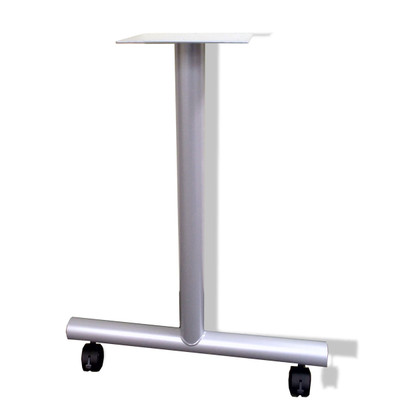

T-Shaped Metal Table Base With Locking Casters for 24"-deep Tops, Silver
Table Leg 24" Deep (Nominal), T Type with casters
Steel, welded tube, standard height T table base with locking casters.
SL Silver finish
Specifications:
T Shape table base with dual wheel casters
24" Deep nominal (actual leg length is 22")
27 7/8" overall height
Weld T leg with 2" dual wheel locking casters.
Steel construction, setup ready to use.
Welded tube ends.
2" round 16 gauge tube (50mm).
Top plate is 6" x 8" with 6 mounting holes. On center
Comes with 6 mounting holes and #8 x 1" pan head screws
Packaged 2 per box (price is for each leg)
2" dual wheel caster with lock (black color) with threaded nut.
Caster goes into weld steel threaded socket.
Powder coated finish. SL Silver
