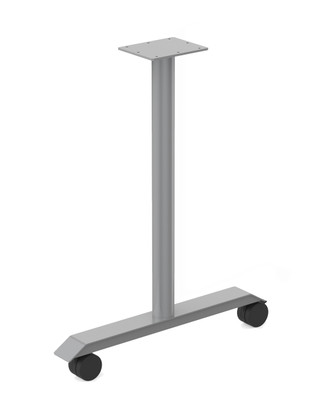

T-Shaped Metal Table Base with Casters
Bevel Base for 24"-deep Tops, Silver
Table Leg Bevel Base 24" Deep (Nominal), T Type with casters (one locking)
Steel, welded tube, standard height T table base with adjustable glides.
KD flat pack requires assembly.
SL Silver finish
1 per carton
Specifications:
T Shape table base, Modern Bevel Base with adjustable glides
24" Deep nominal (actual leg length is 22")
27 7/8" overall height
KD T leg with 2" Casters (one Locking)
Steel construction, KD field assembly required.
2" round 16 gauge tube (50mm).
Modern Bevel Base with glides
Top plate is 6" x 5" with 8 mounting holes.
On center
Comes with 8 mounting holes and #8 x 1" pan head screws
Packaged 1 per box (price is for each leg)
2" Caster (black color) with threaded nut.
Powder coated finish. SL Silver
