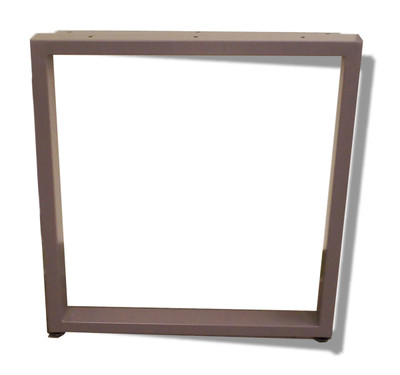

Metal O-Shaped Table Base with Adjustable Glides for 24"-deep Tops, Medium Tone
Table Leg 24" Deep (Nominal), Open Frame O Type with glides
Steel, welded tube, standard height O table base with glides
MT Medium Tone finish
Specifications:
Open Frame O Shape table base with adjustable glide
24" Deep nominal (actual leg length is 23 7/8")
Tubes are rectanagular 2" x 1 5/16"
27 7/8" overall height
Weld O leg with glides and adjustable angled mounting bracket
Steel construction, setup ready to use.
Welded tube ends.
2" rectangular x 1 5/16" tube 16 gauge tube
Top plate is 1" x 18" with 3 mounting holes.
Top of Frame also includes 3 mounting holes for longer screws
Packaged 2 per box (price is for each leg)
2" adjustable glide
Powder coated finish. MT Medium Tone
