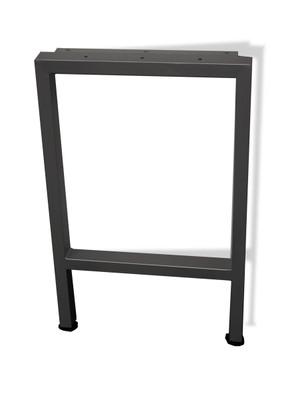

Metal Rectangular tube H-Shaped Table Base
With Adjustable Glides For 18"- 24" Deep Tops
Black Finish
Table Leg 18" Deep (Nominal), H Type with glides
Steel, welded rectangular tube, standard height H table base with glides
BU Black Umber finish
Specifications:
H Shape table base with adjustable glide
18" Deep nominal (actual leg length is 17 13/16")
Rectangular tube is 17 13/16" outside to outside
27 7/8" overall height
Welded Rectangular H leg with glides.
Steel construction, setup ready to use.
Welded tube ends.
Rectangular welded tube 1 15/16" x 1 3/16" (30x50mm).
Top plate L Shape adjustable 1 3/16" long
Comes with 6 mounting holes and 3 long and 3 short mounting screws.
2" adjustable glide
Powder coated finish. BU Black Umber
