39"H AO2 or 34"H AO1 Cubicle Connector Core Rod and Block, 34-Inch, Black Umber

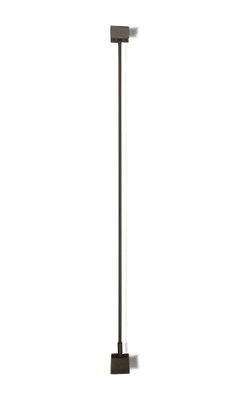

Rod and Block , Metal, 34" H
Pre assembled metal rod and block 34"
For use in a straight line connector panel to panel for 34" or 39" panels
For use with AO2 system (39"), can also be used on AO1 (34")
Includes, Rod and Top and Bottom Rod Blocks.
Black Umber paint
Ready to install for use with AO1 or AO2 panels.
-
Ready to install for use with AO1 or AO2 panels.
Specifications:
Rod and Draw Block Metal
For Straight line connection of panels.
This is a ready to install connector for use with AO1 or AO2 panels.
includes the rod, top and bottom wedge block.
Overall height is 39" nominal, actual height is 33" (for AO1 applications 34" nominal and 33" actual).
Width is 1 7/8"
Top and Bottom blocks are die cast metal powder coated.
