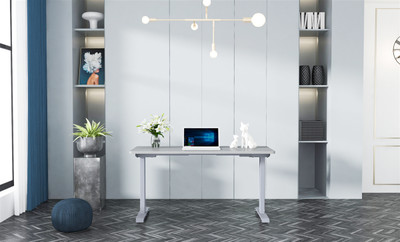

43"-66"-Wide Adjustable Height Desk Frame
2-Stage/Two-Motor, Silver
Powered Table Base designed for use with 48-72" overall tops
Two Motor, Two Stage Unit
Finish SL-Silver
Keypad with control unit, up and down button control, 4 settings for height.
PLEASE NOTE: PRICING IS FOR FRAME AND CONTROL UNIT ONLY, IT DOES NOT INCLUDE THE TOP
Maximum Top Depth 30", Maximum weight 300 lbs
Quick Assembly
| SPECIFICATIONS: Maximum weight rating is 300 lbs (136kgs) | |
| Designed for use with 24" and 30" depth tops. UL Listed product | |
| Motors | Two |
| Motor Rating | 2 amp @ 29v |
| Keypad/Control Rating | 2 amp |
| Power Draw | 2 amp @ 120v AC |
| Control Box Wattage | 200W |
| Noise Level | Below 60Db |
| Stages | Two |
| Top Width | Adjustable 44-66" |
| Top Arm Depth | 18.89" |
| Base Construction | Bar, Flat and Tube Steel |
| Frame Construction | Tube Steel |
| Finish | Black |
| Base Length | 22 13/16" |
| Base Width | 3 5/32" |
| Shortest Width | 43.3" |
| Longest Width | 66.1" |
| Range of Height | 27.75" - 46.85" top of frame |
| Warranty (Limited see specification sheet) | 5 Year on frame 1 Year on motor and keypad |
