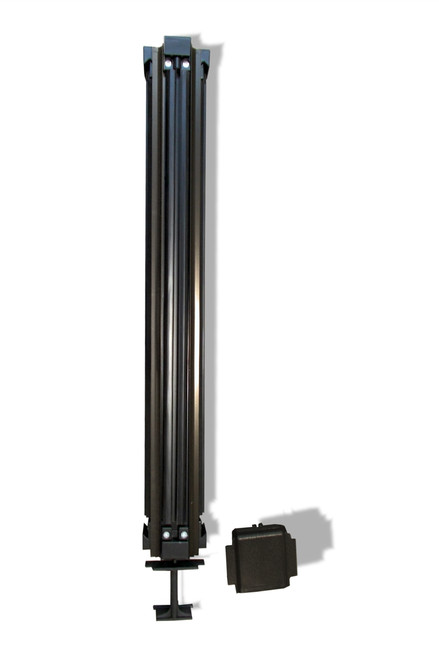

Three-Way 85"H Office Cubicle Wall Connector - Dark Tone
Connector, Assembled, Three Way, 85" H
Pre assembled three way panel connector 85" H.
For use with AO2 system, can also be used on AO1 (remove stem in field).
Includes, connector, mounting hardware and base trim.
Dark tone paint with dark tone base trim.
Ready to install for use with AO1 or AO2 panels.
Please note (for AO1 panels, you must remove the bottom stem and trim, this is done in the field).
-
Ready to install for use with AO1 or AO2 panels.
Please note (for AO1 panels, you must remove the bottom stem and trim, this is done in the field).
Specifications:
For Three Way connections with panels, wall start or power pole.
This is a ready to install connector for use with AO1 or AO2 panels.
The connector is assembled (except lower trim cover which is installed on site).
includes the connector tube painted, top and bottom blocks, top trim cap, base stem (for AO2), base two way trim (for AO2). Does not include AO1 trim (not available).
Overall height is 85" nominal, actual height is 84" (for AO1 applications 80" nominal and 79" actual).
Base trim is 5" overall height (nominal).
Approximate top dimension is 3.5" x 3.5" on the center of the block.
Connector is extruded aluminum with powder coated finish.
Top cap is molded plastic
Base trim is molded plastic
Stem is reinforced molded plastic
Draw and Wedge blocks are die cast metal powder coated black.
The trademarks, service marks or registered trademarks are those of their respective owners.
The parts on this site are made by or for OmniMax USA LLC.
OmniMax USA LLC and Omnipart Import Export Limited are the sole producers of these parts, any references used here are for the sole purpose of identifying usage and application.
These parts do not originate from the original OEM manufactures unless specifically identified as such.
Action Office®, Series 1®, Series 2®, Ethospace®, SQA®, Phoenix Design®, AsNew® are all trademarks of Herman Miller, Inc.
