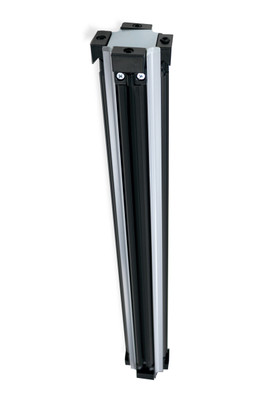

Four-Way 67"H Office Cubicle Panel Connector - Silver
Connector, Assembled, Four Way, 67" H
Pre assembled Four way panel connector 67" H.
For use with AO2 system, can also be used on AO1 (remove stem in field).
Includes, connector, mounting hardware and base trim.
Silver paint.
Ready to install for use with AO1 or AO2 panels.
-
Ready to install for use with AO1 or AO2 panels.
Specifications:
BS Silver
For Four Way connections with panels, wall start or power pole.
This is a ready to install connector for use with AO1 or AO2 panels.
The connector is assembled (except lower trim cover which is installed on site).
includes the connector tube painted, top and bottom blocks, top trim cap,
Overall height is 67" nominal, actual height is 61" (for AO1 applications 62" nominal and 61" actual).
Approximate top dimension is 3.5" x 3.5" on the center of the block.
Connector is extruded aluminum with powder coated finish.
Top cap is molded plastic
Draw and Wedge blocks are die cast metal powder coated black.
