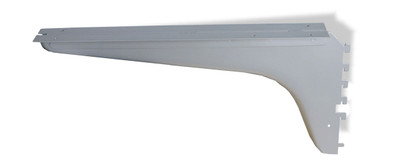

Cantilever Support Arm, Shared
for 24" deep top Right Hand
For use with AO2, Steelcase® Avenir® and 9000® and similar type products.
This set uses screws for top attachment (not included).
Stamped Steel Arm, dimensions are nominal, please see specifications for actual sizes.
Mounting teeth are straight into to panel hanger frame (no curve)
Sold in Right and Left Hand individual parts (Left hand is sold separately)
SL Silver paint
PLEASE NOTE: This product will not work with Haworth®, or Kimball products.
Specifications:
Stamped Steel Shared Support Arm for use with A02, Steelcase and other Products
24" Nominal Depth similar to OEM part
Overall length is 16 5/8" nominally called 18" support arms
Overall height is: 7 1/2" includes
Top Mount area round hole for use with pan head screws (not included) for locating and mounting top.
Mount area includes welded L bracket to allow for shared top conditions
Requires eight pan head screws (not included)
Fits many OEM and aftermarket clone A02 and Steelcase type systems
Sold in left hand or right hand (order separately)
SL Silver Finish
The trademarks, service marks or registered trademarks are those of their respective owners.
The parts on this site are made by or for OmniMax USA LLC.
OmniMax USA LLC and Omnipart Import Export Limited are the sole producers of these parts, any references used here are for the sole purpose of identifying usage and application.
These parts do not originate from the original OEM manufactures unless specifically identified as such.
